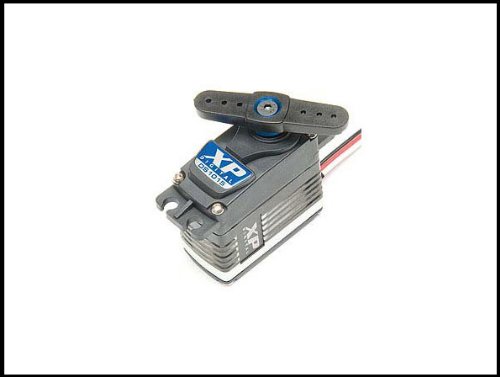

Associated XP 29167 High Torque Digital MG Servo DS1015

Product Review

Team Associated XP - High Torque/High Speed Digital Metal Gear Servo DS1015. #29167

Manuf. Notes:

Team Associated's XP Digital Servos feature many enhancements that improve vehicle control and on-track performance. Equipped with an all-new ultra-precise metal gear and an advanced microprocessor, the XP Digital Servo provides precise outputs and ultra-fast signal response. The state-of-the-art aluminum heat sink mid case lowers operating temperatures for fade-free performance.

Features

Water and dust resistant
JR type connector
Aluminum heat sink case
Coreless motor
Equipped with ultra-precise metal gears
Advanced microprocessor that processes signals faster and with more precision
Advanced case design enhances structural integrity
Higher holding power with fewer angular errors
Superior torque output with low current consumption

Specifications:
Motor: CorelessGear: MetalCase: Aluminum Heat SinkDim. (LxWxH): 41.8x20.6x39.6mmWeight: 66gm./2.328ozs.Torque: @4.8v - 11.6kg./161.1oz-in @6.0v - 14.5kg/201.4oz-inTransit Time 60deg.: @4.8v - 0.138sec @6.0v - 0.108secVoltage range: 4.8v-6.0v
