Smart Universal Battery Pack Charger: 12V - 16.8V, Current Selection

Product Review

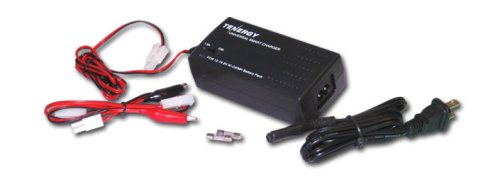

Accessories Included * 1 standard Tamiya Female connector and Fuse house with the smart battery charger. * 1 connector adaptor from standard Male Tamiya to Mini Female. * 1 set of clip adaptor with Male Tamiya connector on one end. * 2 additional fuses Smart Charger Specification * FOR 12V-16.8V NI-MH/NI-CD Battery Packs (10-14 Cells in series) * Input: AC100-240V * Output: 12V-16.8V 0.9 or 1.8A Operation Instruction * Connect battery pack to output connector and plug AC power source. * Make sure battery polarity is connected correctly (Red wire is positive) * Charger will detect battery voltage automatically, Red LED will be on during charging * When battery is fully charged, current will reduce to trickle charging at 50mA,Green LED will be on * Battery will be charged at 0.7A or 1.4A constant current, * Approx, Charging time is about 2 hrs for 3000mAh battery,1.5hr for 1800mAh battery. * Don't charger battery pack with voltage less than 12V or Voltage bigger than 16.8V and capacity less than 1100mAh. * Please contact your seller for instruction. Mfg is not responsible for any damage and consequent damage by Misusage. Caution * The charger is designed for indoor use only. * The Charger should be positioned horizontally and work in well ventilated condition, avoid water and keep it away from flammable explosive goods. * Don't cover the charger when charging, ambient temperature shall not be more than 40oC * Don't touch the plug. * Cut off the power supply before connect or disconnect the charger with batteries. * Don't try to disassemble the charger, High voltage inside, danger!
