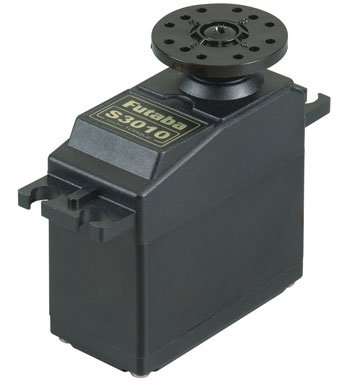

This is the Futaba Standard Size High Torque Servo. / / This servo can produce high-current draw from your batteries. / If using NiMH or LiPo batteries, make sure they are capable / of delivering approximately 2A for each servo. / / FEATURES: Ideal for high-torque applications requiring a standard size servo / Universal connector fits Futaba, Hitec, JR, KO Propo, Airtronics Z, / and Tower Hobbies. Does not fit old Airtronics A plug w/out adapter / Nylon gears / One bearing pre-mounted on output shaft. / One year warranty / / INCLUDES: One Futaba standard size high torque servo with . . . / One 1.4"" (35mm) diameter round servo wheel / One 1.5"" (39mm) diameter 4 point servo wheel / One 1.25"" (32mm) diameter 6 point servo wheel / Four 2mm x 11mm phillips screws / Four rubber grommets & Four metal eyelets / / REQUIRES: Small phillips screwdriver (can use HCAR1070) to mount to surface / / SPECS: Speed: .20 sec/60° @ 4.8V and .16 sec/60° @ 6.0V / Torque: 72 oz-in @ 4.8V and 90 oz-in @ 6V / 5.2 kg-cm @ 4.8V and 6.5 kg-cm @ 6V / Length not including mounting flanges: 1.6"" (40mm) / Length at center of mounting holes: 1.9"" (49.5mm) / Width total: 0.8"" (20mm) / Width at center of mounting holes: 0.40"" (10mm) / Height not including servo horn: 1.5"" (38mm) / Weight: 1.4oz (41g) / / / jxs 5/14/03 / ir/jxs / updt jxs 9/29/03 / jxs 10/29/04
