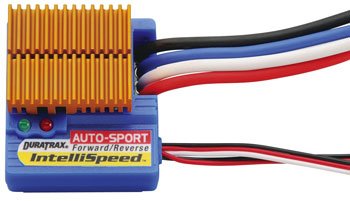

This is the DuraTrax IntelliSpeed Fwd/Rev AutosportSpeed Control for / stock motors from 18 turns up, and 4-7 cell batteries. / / *** 120 Day Limited Warranty *** / / FEATURES: Simple "Plug In" set up for a quick and easy speed control use / Digital glitch prevention / Fully proportional forward and reverse control, with ABS brake / Automatic set-up from the Tx. No adjustment dials or buttons, with / high-visibility Red and Green set-up LEDs / For stock motors having no fewer than 18 turns. Great for entry / level racing / Anti-lock Brake System (ABS) enables greater control while connering / Ultra high frequency gives smoother throttle response, cooler running / motors, and greater motor life / Built in ON/OFF switch lets the vehicle be turned ON at the flip of a / switch, not as soon as the battery is plugged in / Futaba J connector installed / / INCLUDES: One Intellispeed Autosport Speed Control Unit with Gold Heatsinks / Pre-installed standard Tamiya type battery connectors / Pre-installed bullet style motor connectors / Pre-installed receiver connector,(FUTABA) / Mounting and hook up instructions / / REQUIRES: Two .1uf capacitors (can use part number BRPC7110) / / SPECS: Voltage input: 4 to 7 cells (4.8-8.4V) ON-resistance: FWD .007 Ohms / REV .014 Ohms / Maximum current: 128A Weight: 2.1oz (60g) / Size: 1.48"L x 1.34"W x .57"H / (37.5mm x 34mm x 14.4mm) / BEC Voltage/amps: 5V /1A
