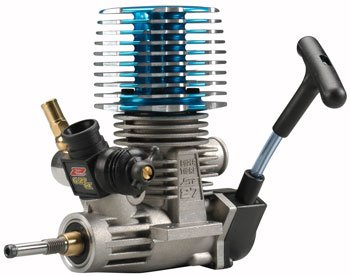

Duratrax G-27CX SG Crankshaft Pull Start Racing Engine

Product Review

This is the DuraTrax/SuperTigre G-27CX Pull Start Racing Engine / for the DuraTrax Raze, DTXD76**. / / FEATURES: ABC cylinder construction-"A"luminum piston,"B"rass cylinder liner / that is "C"hrome plated / Dual ball bearing-supported crankshaft / Dual needle Slide Valve Carburetor / Machined aluminum blue cylinder head / Rear exhaust / SG (pilot) Crankshaft / Three year limited warranty / / INCLUDES: DuraTrax/SuperTigre G-27CX Pull Start Racing Engine with glow plug / / REQUIRES: Fuel: Car fuel blend with 20% nitromethane content (ODOP3520) / Glow starter, plug wrench and track equipment / / SPECS: Displacement: .27 cu in (4.4cc) / Bore: .72" (18.2mm) / Stroke: .67" (17mm) / Output: 2.5 hp @ 30,000 rpm / Practical RPM Range: 3,000-35,000 / Weight: 14.1oz (400g) / / Distance Between Mounting Holes Same Side: .83" (21mm) / Distance Between Mounting Holes Opposite Side: 1.4" (37mm) / Height from Bottom of Mounting Tabs/Top of Cylinder Head: 3.6" (92mm) / Height from Bottom of Crankcase to Top of Cylinder Head: 4.2" (107mm) / Width at Mounting Tabs: 1.8" (46mm) / Distance from Pull Start to Front Bearing: 3.3" (84.5mm) / Distance from Pull Start to End of Crankshaft: 3.9" (99mm) / Diameter of Exhaust Opening: .59" (15mm) / Diameter of Carburetor Opening: .56" (14.2mm) / / Factory Needle Settings: / High Speed Needle: 4.5 turns OUT from closed / Low Speed Needle: 12.5 turns OUT from closed
